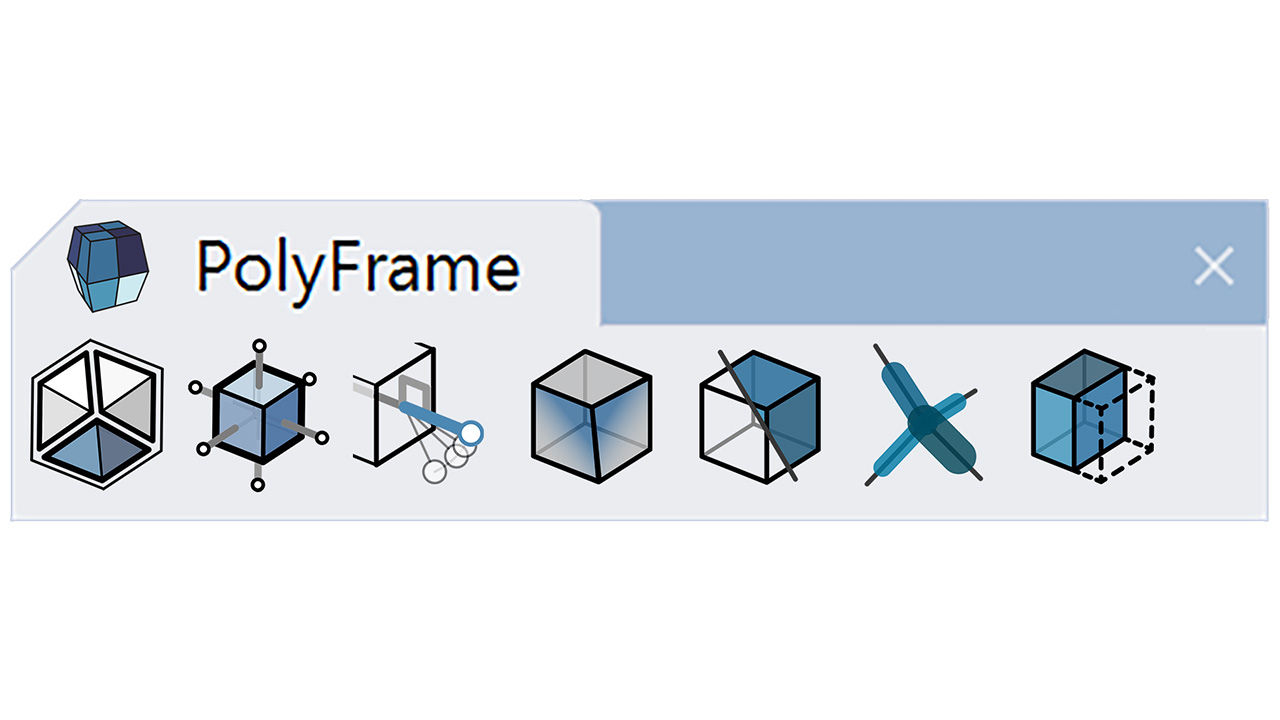

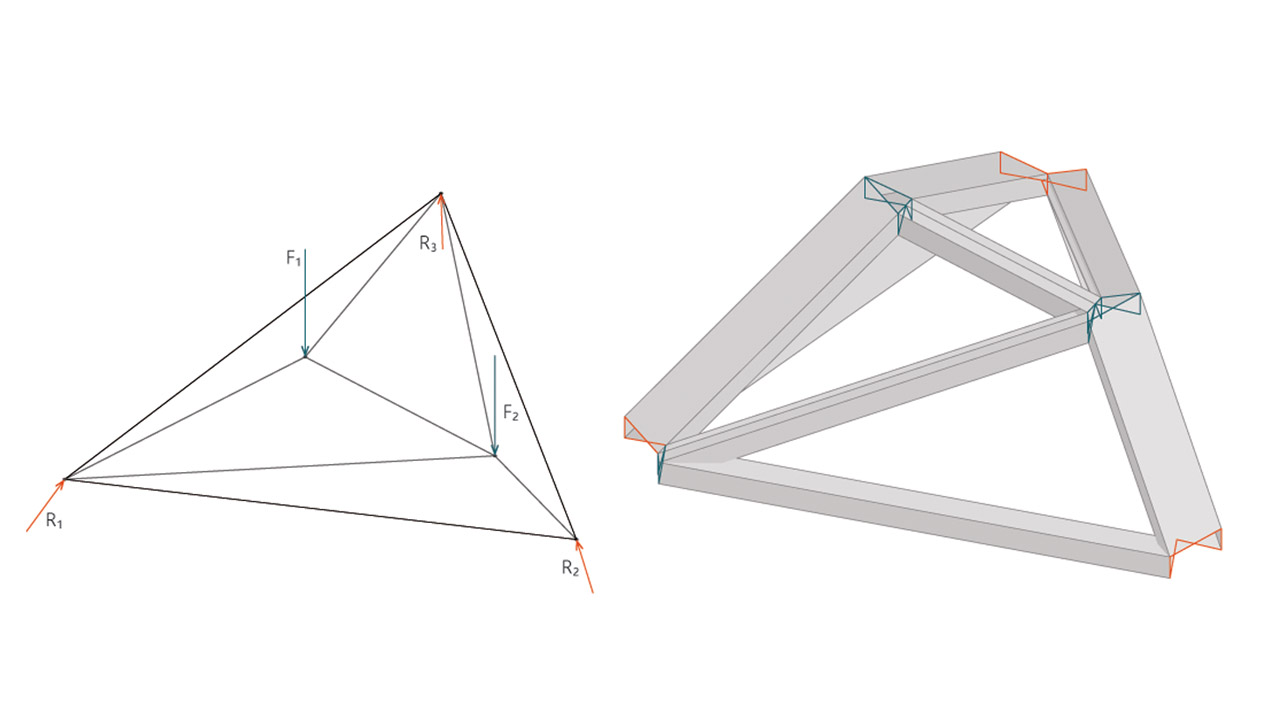

PolyFrame, Efficient Computation for 3D Graphic Statics

Andrei Nejur and Masoud Akbarzadeh

Abstract

In this paper, we introduce a structural form-finding plugin called PolyFrame for the Rhinoceros software. This plugin is developed based on the methods of 3D Graphic Statics and Polyhedral Reciprocal Diagrams. The computational framework of this plugin uses new robust and efficient algorithms for the creation and modification of complex funicular, compression-only structural forms and is freely available for students, designers, researchers, and practitioners in the fields of architecture, structural engineering, mechanical engineering, and material science. The geometry-based structural design methods are one of the most intuitive yet powerful structural design methods that have recently been extended to 3D based on the Principles of the Equilibrium of Polyhedral Frames. Still, the increased geometrical complexities of the polyhedral diagrams hinder more in-depth practical applications and the research in this field. The framework proposed in this paper can manage, in near real-time, the creation and transformation of reciprocal polyhedral diagrams with a large number of elements as form and force diagrams for structural design purposes. The paper also introduces a hybrid object-oriented data structure that extends and generalizes the previously proposed approaches and thus allows the users to incorporate a variety of different geometric constraints, including edge lengths and the location of the supports from the initial stages of design. Additionally, a new parallel manipulation algorithm is introduced that is capable of transforming polyhedral diagrams while preserving the edge directions and face normal. As a result, a designer can effectively manipulate both structural form and its force distribution without breaking their reciprocity.

BibTex
A. Nejur, M. Akbarzadeh. PolyFrame, Efficient Computation for 3D Graphic Statics. , 2020. under review
[BibTeX] [Download PDF]
@article{nejur2020polyframe,,
  title={PolyFrame, Efficient Computation for 3D Graphic Statics},
  author={Nejur, A. and Akbarzadeh, M.},
  journal={},
  year={2020}
}



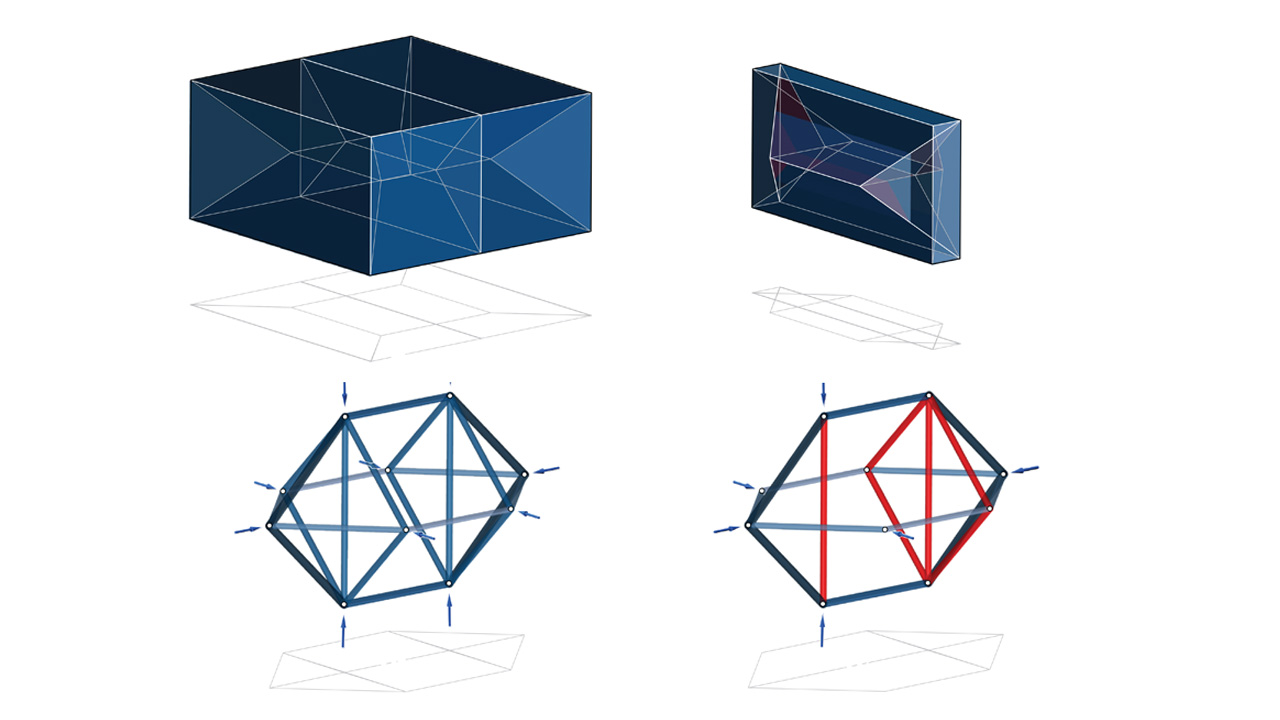

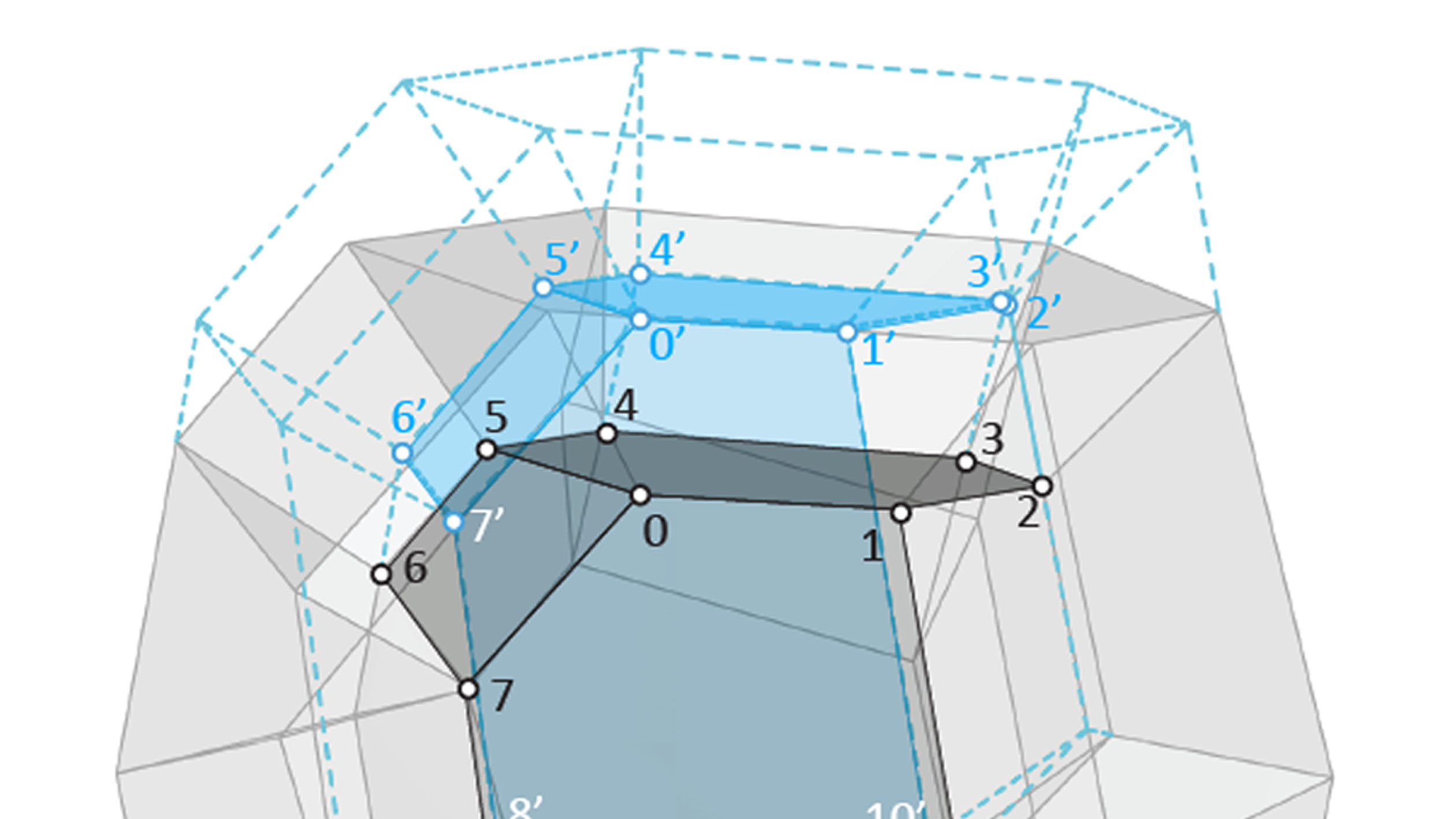

Algebraic 3D Graphic Statics: Constrained Areas

Masoud Akbarzadeh and Marton Hablicsek

Abstract

This research is a continuation of the Algebraic 3D Graphic Statics Methods. It provides algorithms and (numerical) methods to geometrically control the magnitude of the internal and external forces in the reciprocal diagrams of 3D/Polyhedral Graphic statics. 3D graphic statics (3DGS) is a recently rediscovered method of structural form-finding based on a 150-year old proposition by Rankine and Maxwell in Philosophical Magazine. In 3DGS, the form of the structure and its equilibrium of forces is represented by two polyhedral diagrams that are geometrically and topologically related. The areas of the faces of the force diagram represent the magnitude of the internal and external forces in the system. For the first time, the methods of this research allow the user to control and constrain the areas and edge lengths of the
faces of general polyhedrons that can be convex, self-intersecting, or concave. As a result, a designer can explicitly control the force magnitudes in the force diagram and explore the equilibrium of a variety of compression and tension-combined funicular structural forms. In this method, a quadratic formulation is used to compute the area of a single face based on its edge lengths. The approach is applied to manipulating the face geometry with a predefined area and the edge lengths. Subsequently, the geometry of the polyhedron is updated with newly changed faces. This approach is a multi-step algorithm where each step includes computing the geometry of a single face and updating the polyhedral geometry. One of the unique results of this framework is the construction of the zero-area, self-intersecting faces, where the sum of the signed areas of a self-intersecting face is zero, representing a member with zero force in the form diagram. The methodology of this research can clarify the equilibrium of some systems that could not be previously justified using reciprocal polyhedral diagrams. Therefore, it generalizes the principle of the equilibrium of polyhedral frames and opens a completely new horizon in the design of highly-sophisticated funicular polyhedral structures that are beyond compression-only systems.

BibTex
M. Akbarzadeh, M. Hablicsek. Algebraic 3D Graphic Statics: Constrained Areas. Eprint = arXiv:2007.15133, 2020.
[BibTeX] [Download PDF]
@article{akbarzadeh2020algebraic,
  title={Algebraic 3D Graphic Statics: Constrained Areas},
  author={Akbarzadeh, M. and Hablicsek, M.},
  journal={Eprint = arXiv:2007.15133},
  year={2020}
}

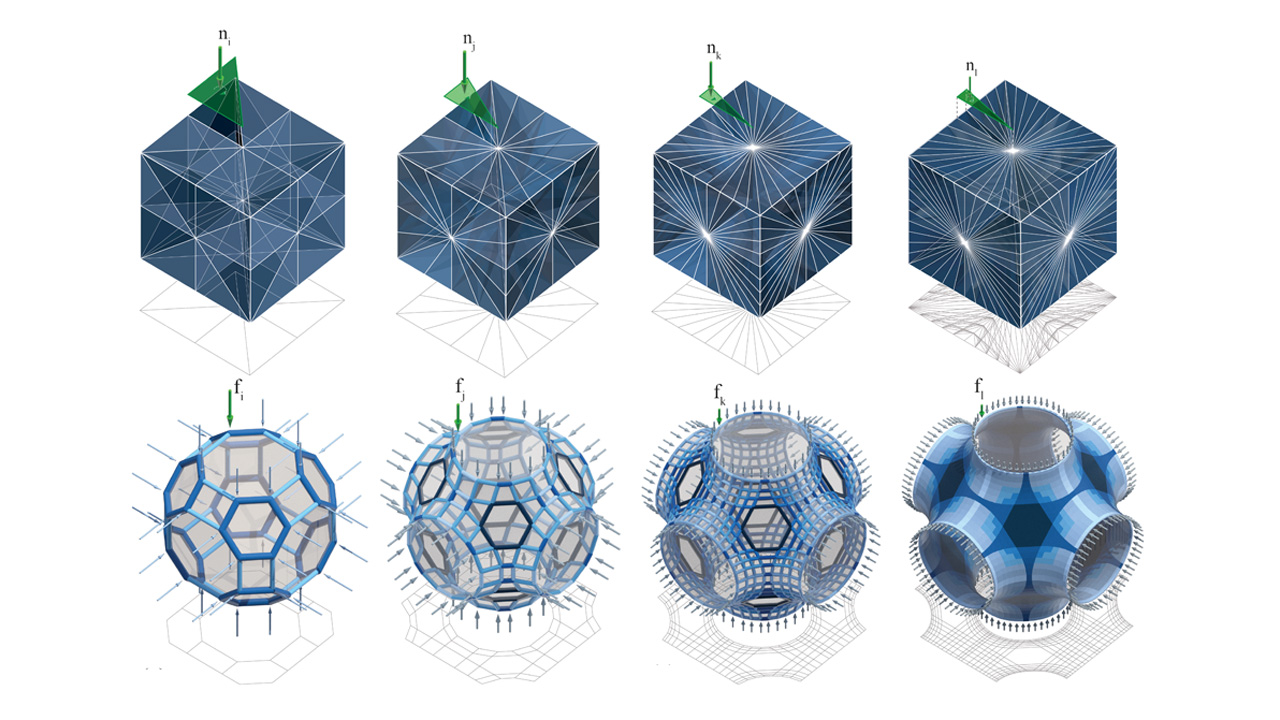

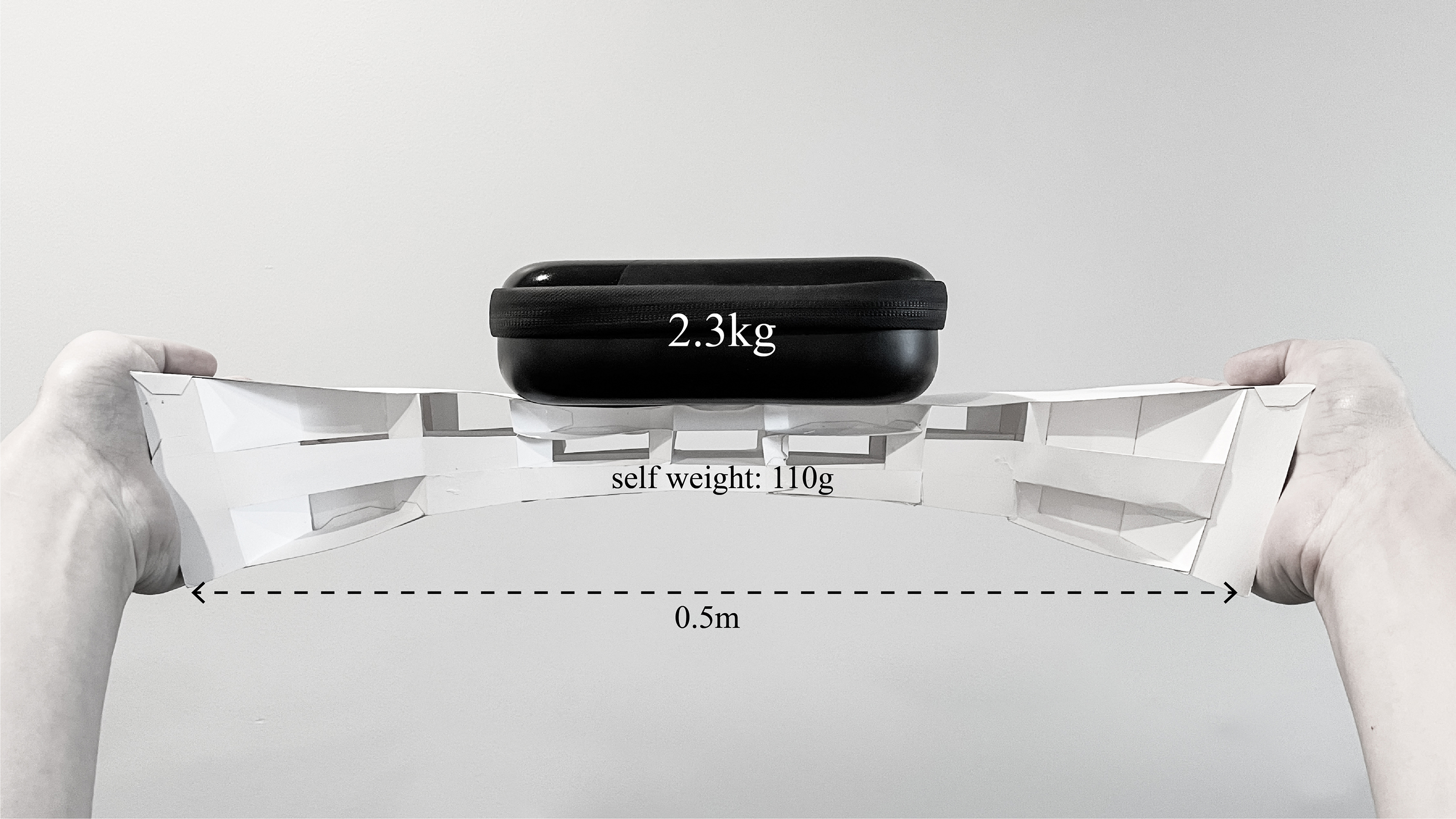

Geometry-based structural form-finding to design architected cellular solids

Mostafa Akbari, Armin Mirabolghasemi, Hamid Akbarzadeh, Masoud Akbarzadeh

Abstract

In this paper, we introduce a geometry-based structural design method as an alternative approach for designing low-density structures applicable to material science and mechanical engineering. This method will provide control over internal force-flow, boundary condition, and applied loads. The methodology starts with an introduction to the principles of geometric equilibrium and continues by introducing multiple design techniques to generate truss cellular, polyhedron cellular, and shell cellular (or Shellular) materials by manipulating the geometry of the equilibrium of force. The research concludes by evaluating the mechanical performance of a range of cellular structures designed by this approach.

BibTex
M. Akbari, A. Mirabolghasemi, H. Akbarzadeh, M. Akbarzadeh. Geometry-based structural form-finding to design architected cellular solids. ACM SYMPOSIUM ON COMPUTATIONAL FABRICATION, SCF'20, Virtual Event, USA, November 5-6, 2020. Association for Computing Machinery, ACM.
[BibTeX] [Download PDF]
@inproceedings{akbari2020geometry,
  title={Geometry-based structural form-finding to design architected cellular solids},
  author={Akbari, M. and Mirabolghasemi, A. and Akbarzadeh, H. and Akbarzadeh, M.},
  booktitle={ACM SYMPOSIUM ON COMPUTATIONAL FABRICATION, SCF'20},
  year={2020},
  month={November 5-6},
  publisher={Association for Computing Machinery, ACM},
  address={Virtual Event, USA}
}

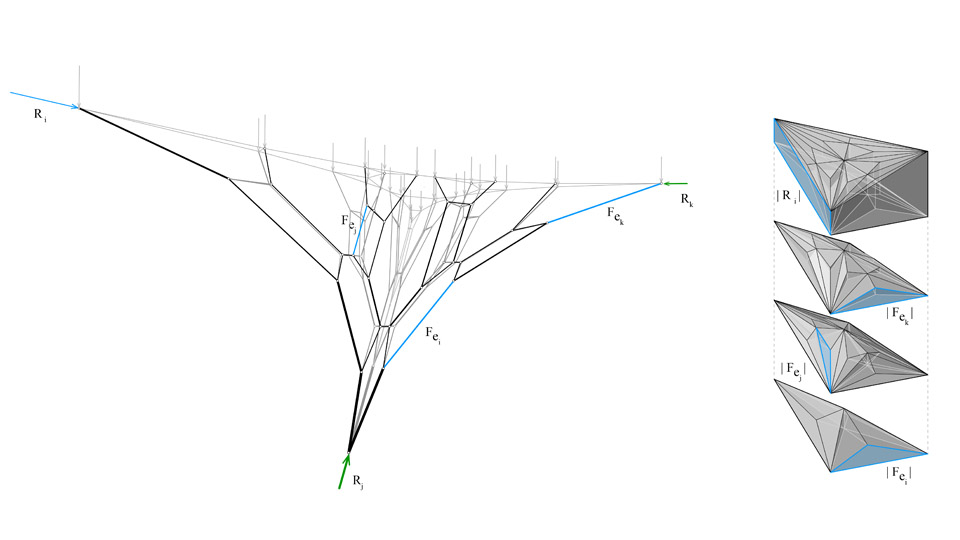

Geometric Degrees of Freedom and Non-Conventional Spatial Structural Forms

Masoud Akbarzadeh and Marton Hablicsek

Abstract

This paper expands on the Geometric Degrees of Freedom (GDoF) in the context of geometry-based structural form finding and emphasizes its importance in finding non-conventional architectural structures in three-dimensional space. Using GDoF allows a designer to find various iterations of a network, each representing a unique design within the state of equilibrium and explore the non-conventional solutions particularly for funicular polyhedrons of 3D graphic statics. The paper briefly explains a method to find the GDoF of a given network consisting of closed polygons in 2D or 3D and applies the same method in finding the GDoF of reciprocal polyhedral diagrams of 3D graphic statics and expands on their non-trivial geometric transformations with their planarity constraints. The paper goes beyond the GDoF and provides a method to parameterize all the members of a network by assigning weights to all edges in a network to control the design properties of the solutions. For instance, a synclastic, compression-only shell can turn into an anticlastic compression-and-tension combined shell with the same magnitude of internal forces and external loads reciprocal to the same force distribution/diagram. Using this technique in the context of 3D graphic statics allows a designer to find non-conventional spatial structural solutions with both compression and tension members with planar faces for architectural/structural design purposes.

BibTex
M. Akbarzadeh, M. Hablicsek. Geometric Degrees of Freedom and Non-Conventional Spatial Structural Forms. Impact: Design With All Senses: Design Modelling Symposium Berlin, Berlin, Germany, September 23-25, 2020. Springer International Publishing.
[BibTeX] [Download PDF]
@inproceedings{akbarzadeh2020geometric,
  title={Geometric Degrees of Freedom and Non-Conventional Spatial Structural Forms},
  author={Akbarzadeh, M. and Hablicsek, M.},
  booktitle={Impact: Design With All Senses: Design Modelling Symposium Berlin},
  year={2020},
  month={September 23-25},
  publisher={Springer International Publishing},
  address={Berlin, Germany}
}

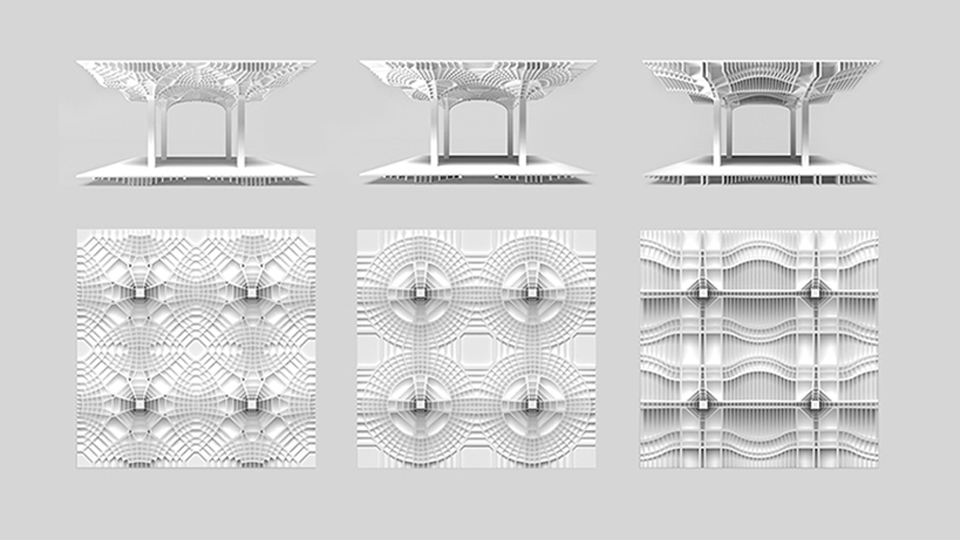

Iterative Machine Learning for Structural Form Finding with Fabrication constraints

Hao Zheng, Vahid Moosavi, Masoud Akbarzadeh

Abstract

This paper proposes a new design approach based on an iterative machine learning algorithm to speed up the topological design exploration of compression-only shell structures with planar faces, considering both structural performance and construction constraints. In this paper, we show that building neural networks allows one to train a surrogate model to accelerate the structural performance assessment of various possible structural forms without going through a significantly slower process of geometric form-finding. The geometric form-finding methods of 3D graphic statics are used as the primary structural design tool to generate a single-layer, compression-only shell with planar faces. Subdividing the force diagram and its polyhedral cells using various rules results in a variety of topologically different compression-only structures with different load-bearing capacities for the same boundary conditions. The solution space for all possible compression-only forms for a given boundary condition is vast, which makes iterating through all forms to find the ideal solutions practically impossible. After training with an iterative active sampling method, the surrogate model can evaluate the input data, including the subdivision rules, and predict the value of the structural performance and the construction constraints of the planar faces within milliseconds. As a result, one can then evaluate the nonlinear relations among all the subdivision rules and the chosen structural performance measures, and then, visualize the entire solution space.
Consequently, multiple solutions with customized thresholds of the evaluation criteria are found that show the strength of this method of form-finding in generating design solutions. Besides, considering the total training time of the neural network model, the proposed framework is still faster than a traditional optimization method, such as the genetic algorithm that can find only the optimum values. This process will result in interactive sampling methods in which the machine learning models assist the designer in choosing and controlling different design strategies by providing real-time feedback on the effects of the selected parameters on the design outputs.

BibTex
H. Zheng, V. Moosavi, M. Akbarzadeh. Iterative Machine Learning for Structural Form Finding with Fabrication constraints. Automation in Construction, November, 2020.
[BibTeX] [Download PDF]
@article{zheng2020iterative,
  title={Iterative Machine Learning for Structural Form Finding with Fabrication constraints},
  author={Zheng, H. and Moosavi, V. and Akbarzadeh, M.},
  journal={Automation in Construction},
  year={2020},
  month={November}
}

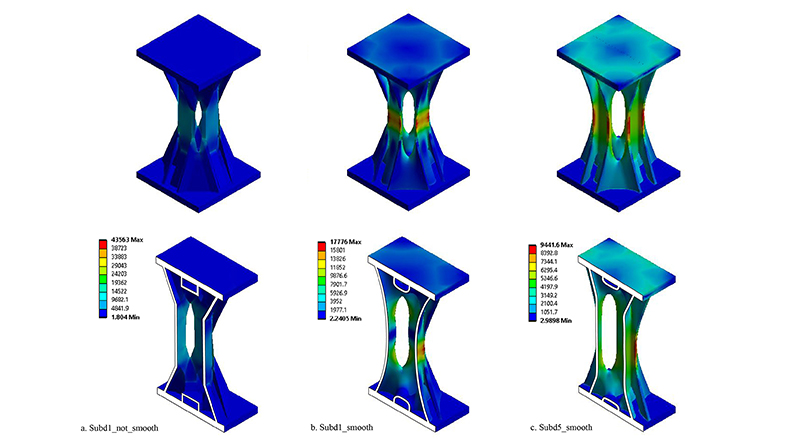

From Polyhedral to Anticlastic Funicular Spatial Structures

Mostafa Akbari, Mohammad Bolhassani, Masoud Akbarzadeh

Abstract

The structural performance of cellular polyhedral funicular geometries in 3D graphic statics(3DGS) relies heavily on the buckling performance of the system; if the edges of the form diagram are immediately translated to structural members. In addition, the spatial geometry of the nodes makes the fabrication process quite challenging. This paper proposes a novel approach to translate a cellular polyhedral geometry into a polyhedral surface-based structure in 3DGS that is comparable to the widely known minimal surface geometries in the context of structural design, bridging the gap between cellular polyhedral geometry and surface-based structure. Using such anticlastic structures for materialization in place of polyhedral geometry in 3DGS improves the structural performance of the system and facilitates its fabrications process. The proposed approach introduces a new typology of funicular spatial structures consist of a anticlastic surface for a given boundary condition. Followed by introducing the computational procedure to generate such geometries, the paper concludes by evaluating the mechanical performance of a cellular specimen and a funicular anticlastic surface structure, based on the same polyhedral geometry with the same volume of construction material.

BibTex
M. Akbari, M. Akbarzadeh, M. Bolhassani. From Polyhedral to Anticlastic Funicular Spatial Structures. Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE, Barcelona, Spain, October 7-10, 2019.
[BibTeX] [Download PDF]
@inproceedings{akbari2019polyhedral,
  title={From Polyhedral to Anticlastic Funicular Spatial Structures},
  author={Akbari, M. and Akbarzadeh, M.  and Bolhassani, M.},
  booktitle={Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE},
  year={2019},
  month={October 7-10},
  address={Barcelona, Spain}
}

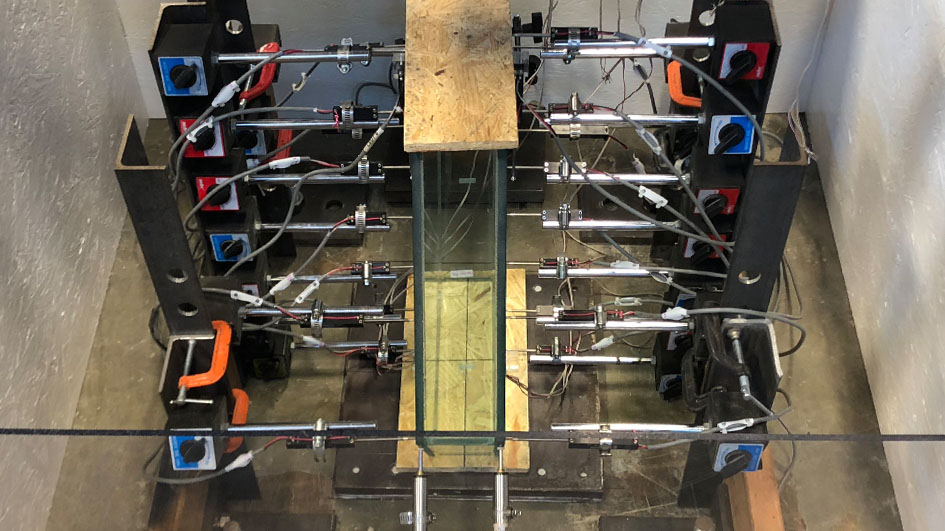

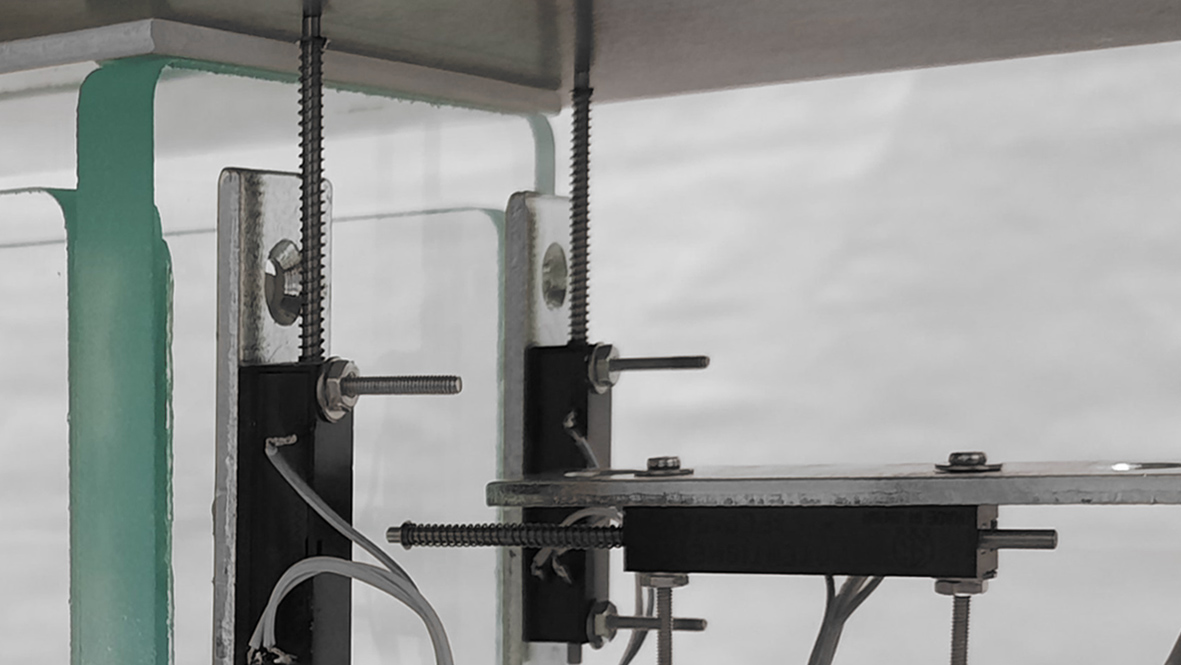

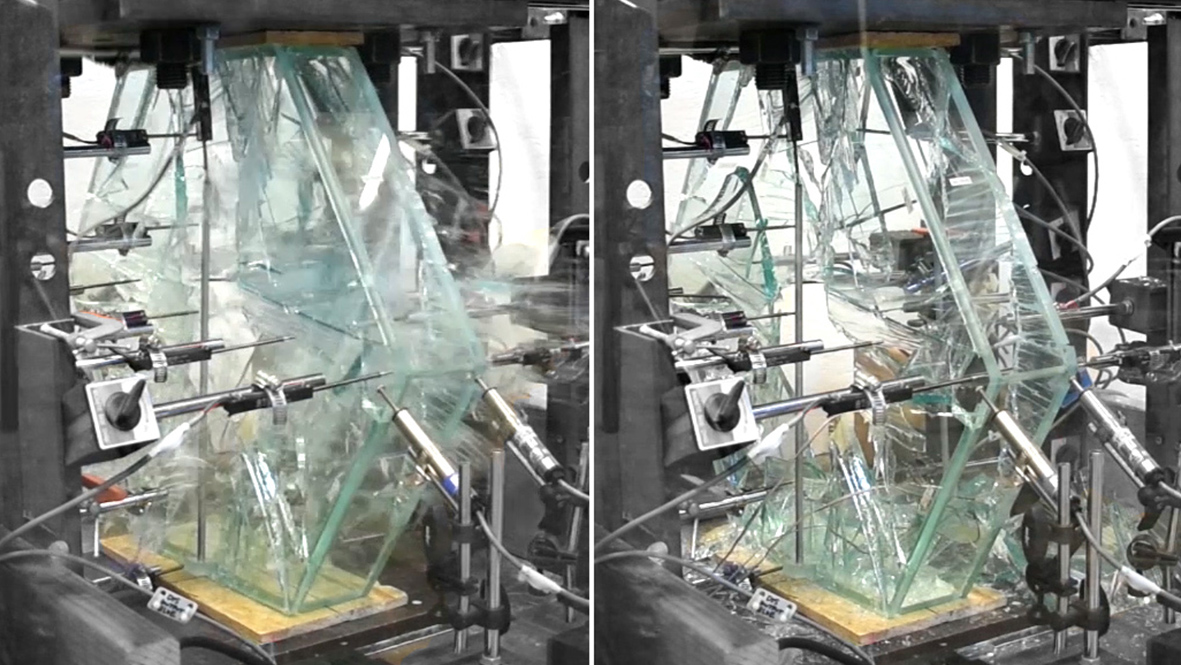

Behavior of Modular Components in a Funicular Glass Bridge

Mohammad Bolhassani, Cory Byrnes, Joseph Robert Yost, Masoud Akbarzadeh, Jens Schneider, Andrei Nejur

Abstract

The recent evolution of two-dimensional graphic statics (2DGS) into the third dimension (3DGS) has broadened the opportunity for extensive exploration into the design of efficient funicular structural systems. Furthermore, the design and use of structural glass have expanded significantly in recent years. This research exploits the current potential to which 3DGS and computational form finding can be used to extend the boundaries of optimization in the design of glass structures. The ultimate research objective is the construction of a fully-transparent, high-performance pedestrian bridge composed entirely of glass plates, which are oriented in a double layer, funicular, compression-dominating configuration. The funicular form of the bridge, developed using 3DGS, maximizes structural performance and minimizes the use of materials and resources: making it both architecturally unique and structurally efficient.

Unique to this structure is a modular approach to construction, where the bridge is built using a collection of inter-connected polyhedral hollow glass units (HGU). The proposed modular approach simplifies construction, improves quality control and allows for removal and replacement of an individual HGU in the event of damage. The research will initially involve the study of a single HGU. The behavior of an individual HGU will be related to the boundary and edge geometry of the glass plates, the connection detail between glass plates, and the collective interaction between glass and connection. The initial study will involve fabrication methodology, finite element modeling, and experimental testing. Following the single HGU study, will be an investigation of a reduced scale bridge for the purpose of understanding the inter-HGU connection behavior. Finally, a full-scale bridge will be built, modeled and tested. This paper will present the overall research methodology with an emphasis on construction, analysis, and experimental testing of an individual HGU.

BibTex
M. Bolhassani, C. Byrnes, J. R. Yost, M. Akbarzadeh, J. Schneider, A. Nejur. Behavior of Modular Components in a Funicular Glass Bridge. Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE, Barcelona, Spain, October 7-10, 2019.
[BibTeX] [Download PDF]
@inproceedings{bolhassani2019behavior,
  title={Behavior of Modular Components in a Funicular Glass Bridge},
  author={Bolhassani, M. and Byrnes, C. and Yost, J. R. and Akbarzadeh, M. and Schneider, J. and Nejur, A.},
  booktitle={Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE},
  year={2019},
  month={October 7-10},
  address={Barcelona, Spain}
}

Algebraic Formulation for Controlling the Face Areas of 3DGraphic Statics

Masoud Akbarzadeh, Marton Hablicsek

Abstract

Geometric construction of the reciprocal polyhedrons as the form and force diagrams are at the heart of 3D/polyhedral graphic statics. Moreover, the face areas of the force diagram are associated with the magnitude of the applied loads and internal forces in the form diagram. Therefore, controlling the face areas in the design process is quite crucial in structural form finding and optimization. In a previous paper, authors presented an algebraic formulation for the construction of reciprocal polyhedral diagrams by computing the edge lengths of closed polygons around each edge of the primal diagram. These polygons thus represent the faces of the dual and reciprocal diagram.

Although this formulation is a novel approach in constructing the reciprocal diagrams, it does not address how the areas of the faces of the resulting polyhedron could be controlled for form finding and optimization purposes. In this paper, we will expand on the algebraic relationship between the area of a face and its edges in the context of reciprocal polyhedral diagrams. In addition, the paper explains the solution space of the equation system comprising of the equilibrium equations and the equations describing the areas of the faces specified by the user.

The approach of this research allows controlling the areas of convex as well as self-intersecting (complex) faces with positive and negative regions per face. With the approach of this paper, a designer can even assign zero areas for certain faces of the force diagram in the form finding process and remove their corresponding force component/member in the form diagram.

BibTex
M. Akbarzadeh, M. Hablicsek. Algebraic Formulation for Controlling the Face Areas of 3DGraphic Statics. Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE, Barcelona, Spain, October 7-10, 2019.
[BibTeX] [Download PDF]
@inproceedings{akbarzadeh2019algebraic,
  title={Algebraic Formulation for Controlling the Face Areas of 3DGraphic Statics},
  author={Akbarzadeh, M. and Hablicsek, M.},
  booktitle={Proceedings of IASS Symposium 2019 and Structural Membranes 2019, FORM and FORCE},
  year={2019},
  month={October 7-10},
  address={Barcelona, Spain}
}

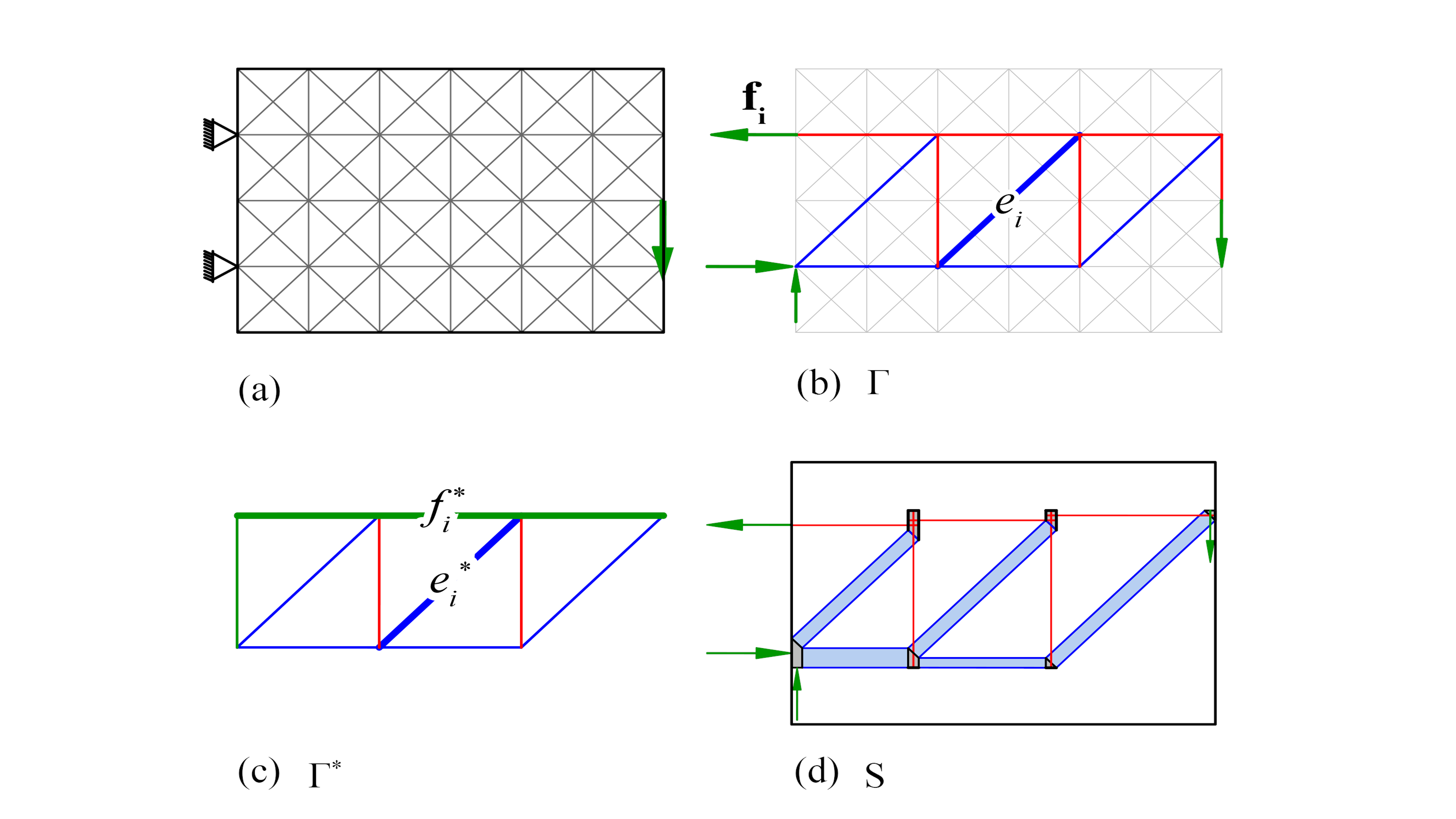

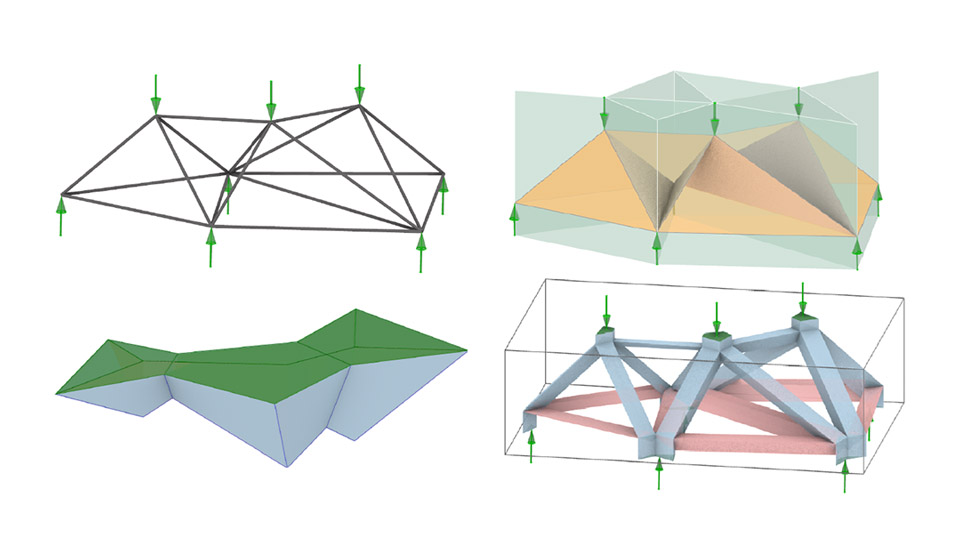

Graphic statics in a continuum: strut-and-tie models for reinforced concrete

Salma Mozaffari, Masoud Akbarzadeh, Thomas Vogel

Abstract

This research bridges the gap between the numerical layout optimization method and the geometry-based analysis and design method of graphic statics by connecting the two for the application of strut-and-tie models in reinforced concrete design. The study suggests a new algorithm for the algebraic graphic statics of indeterminate trusses inspired by the layout optimization method. Also, as a contribution to the field of graphic statics, the formulation provided in this paper can be used to generate form and force diagrams for a continuum, where the topology for none of the diagrams is initially provided.

The generation of strut-and-tie models for reinforced concrete has extensively relied on optimization methods, which are helpful techniques for the initiation of a load path inside a continuous domain. However, the resulting truss model is a single answer, and there exists limited control to methodically modify the topology or the force distribution of the model. Furthermore, the minimized-weight truss does not guarantee a practical strut-and-tie model or an optimized performance of a reinforcement design.

As a result of this study, in contrast to the conventional optimization techniques with a single solution, the designer has a vast design space provided by graphic statics and its intuitive properties with explicit control over the geometry and the force equilibrium. The algorithm provided in this paper is applied to various continuous domains to systematically generate a variety of strut-and-tie models, their force diagrams, and constant stress fields. The production of the optimized truss model and its force distribution allows the direct interactive manipulations of the design while observing the changes in the stress fields and the reinforcement arrangement. The open-source repository of the implemented integrated algorithm and the examples used in this paper is also provided.

BibTex
S. Mozaffari, M. Akbarzadeh, T. Vogel. Graphic statics in a continuum: strut-and-tie models for reinforced concrete. Computers and Structures, November, 2020.
[BibTeX] [Download PDF]
@article{mozaffari2020graphic,
  title={Graphic statics in a continuum: strut-and-tie models for reinforced concrete},
  author={Mozaffari, S. and Akbarzadeh, M. and Vogel, T.},
  journal={Computers and Structures},
  year={2020},
  month={November}
}

Generation of strut-and-tie models and stress fields for structural concrete

Salma Mozaffari, Masoud Akbarzadeh, Thomas Vogel

Abstract

Strut-and-tie models are principally the discretized stress field patterns, which simplify the dimensioning and detailing of reinforced concrete members. The computational generation of stress field patterns currently relies on finite element analysis or optimization methods. This research addresses the limitations of optimization algorithms in producing reasonable strut-and-tie configurations. The computational procedure of this paper utilizes layout optimization and graphic statics cooperatively to create strut-and-tie models and stress fields for two-dimensional cases. The presented examples demonstrate the capabilities of the mentioned methods to produce some desired results for two-dimensional scenarios and suggest a similar approach for solving the strut-and-tie problems for three-dimensional cases.

BibTex
S. Mozaffari, M. Akbarzadeh, T. Vogel. Generation of strut-and-tie models and stress fields for structural concrete. Structures Congress 2019, Orlando, Florida, April 24-27, 2019.
[BibTeX] [Download PDF]
@inproceedings{mozaffari2019generation,
  title={Generation of strut-and-tie models and stress fields for structural concrete},
  author={Mozaffari, S. and Akbarzadeh,  M. and Vogel,T.},
  booktitle={Structures Congress 2019},
  year={2019},
  month={April 24-27},
  address={Orlando, Florida}
}

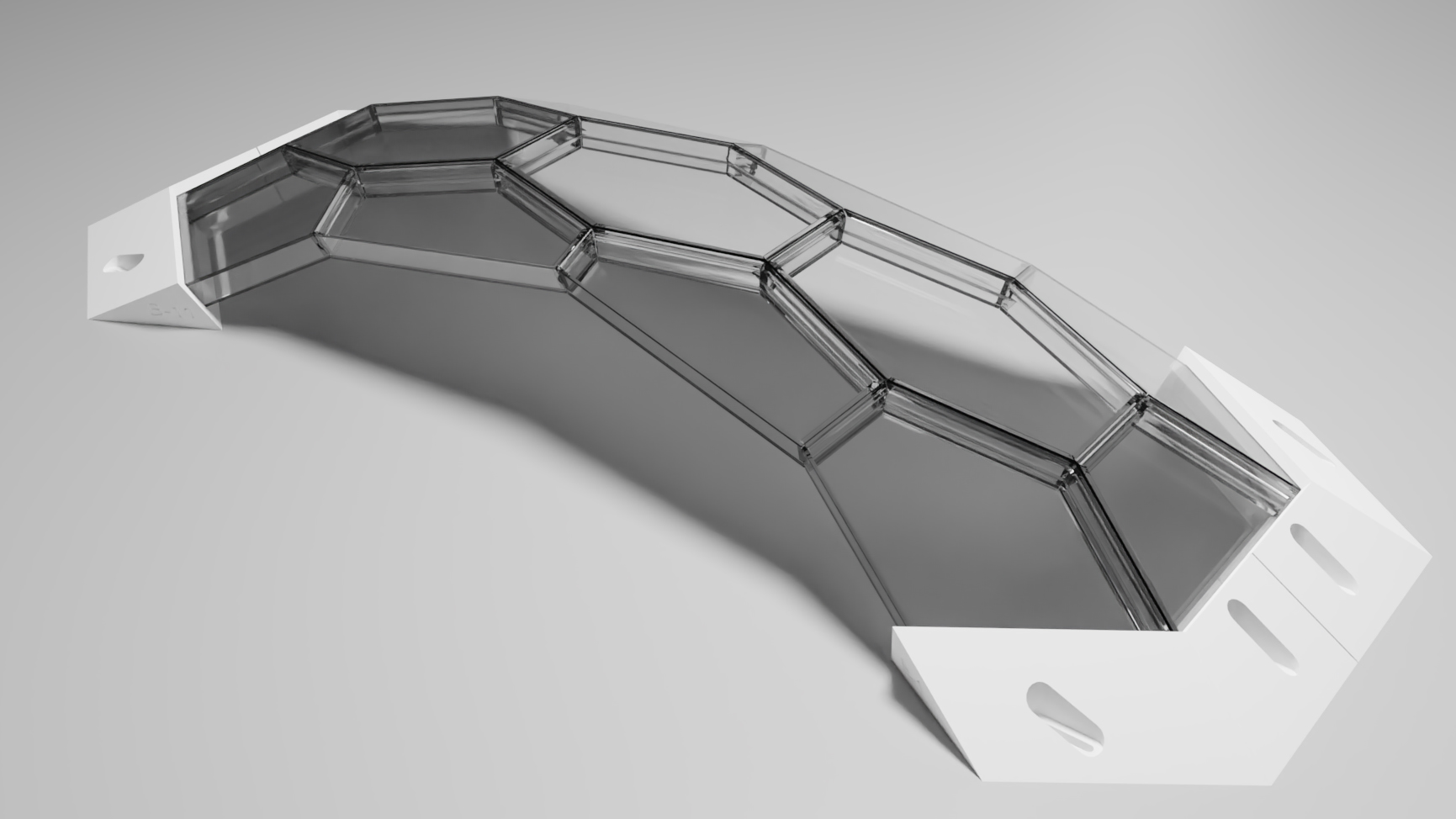

The Design of an Ultra-Transparent Funicular Glass Structure

Masoud Akbarzadeh, Mohammad Bolhassani, Andrei Nejur, Joseph Robert Yost, Cory Byrnes, Jens Schneider, Ulrich Knaack, Chris Borg Costanzi

Abstract

This project presents novel research in structural design and analysis of an ultra-transparent pedestrian bridge made exclusively of glass sheets in a double layer, funicular, compression–only configuration. The funicular form of the bridge maximizes its structural performance and minimizes the use of materials and resources. The structural form of the project has been developed using 3D graphic statics (3DGS) that is a geometry-based structural design method allowing the extensive exploration of funicular structural solutions in three dimensions. Using the 3DGS method results in structural forms that are polyhedral geometries with planar faces. Therefore, not only does 3DGS find the efficient structural forms, but its planarity constraint facilitates the construction using flat sheet materials. The current structure of the bridge consists of three-dimensional polyhedral cells as hollow glass blocks with planar glass faces held together in compression by using a transparent silicon-based substance. The total span of the bridge is 10 m (32.81 ft) with a one-meter deck for pedestrian traffic. The asymmetric geometry of the bridge will significantly improve the behavior of the bridge under asymmetric and lateral loading conditions.

BibTex
M. Akbarzadeh, M. Bolhassani, A. Nejur, J. R. Yost, C. Byrnes, J. Schneider, U. Knaack, C. Borg Costanzi. The Design of an Ultra-Transparent Funicular Glass Structure. Structures Congress 2019, Orlando, Florida, April 24-27, 2019.
[BibTeX] [Download PDF]
@inproceedings{akbarzadeh2019design,
  title={The Design of an Ultra-Transparent Funicular Glass Structure},
  author={Akbarzadeh, M. and Bolhassani, M. and Nejur, A. and Yost, J. R. and Byrnes, C. and Schneider, J. and  Knaack, U. and Borg Costanzi, C.},
  booktitle={Structures Congress 2019},
  year={2019},
  month={April 24-27},
  address={Orlando, Florida}
}

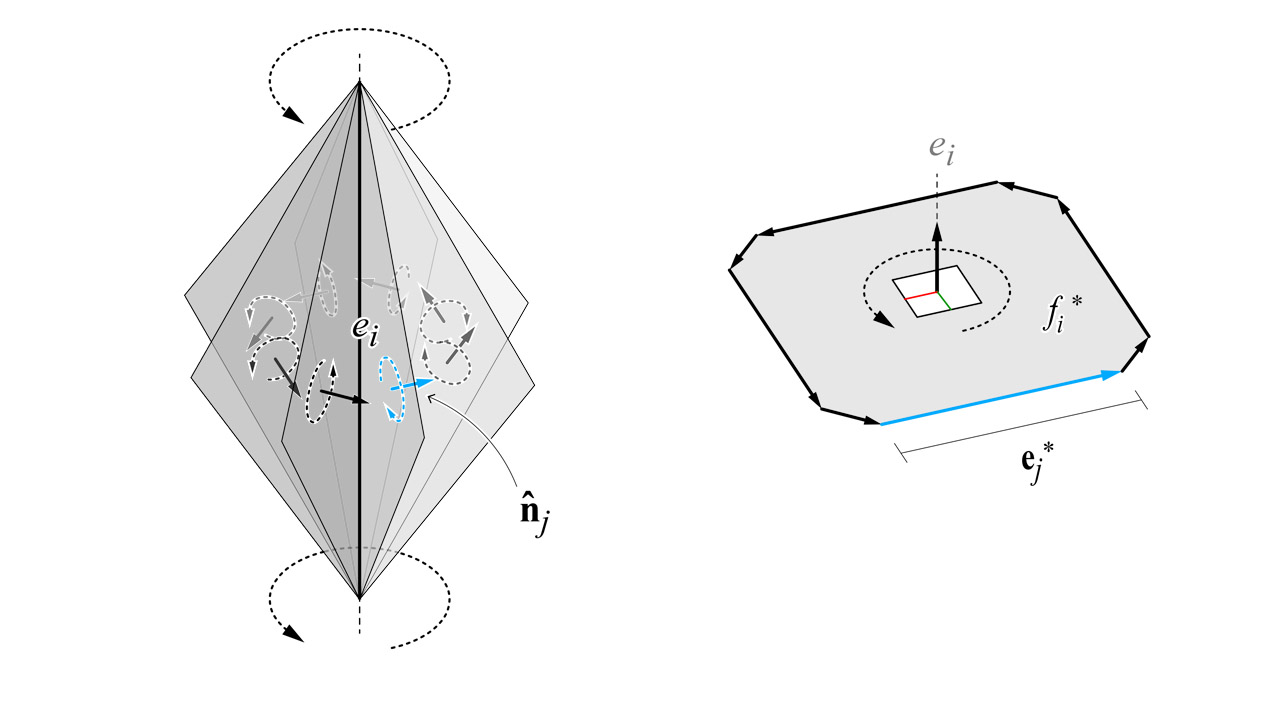

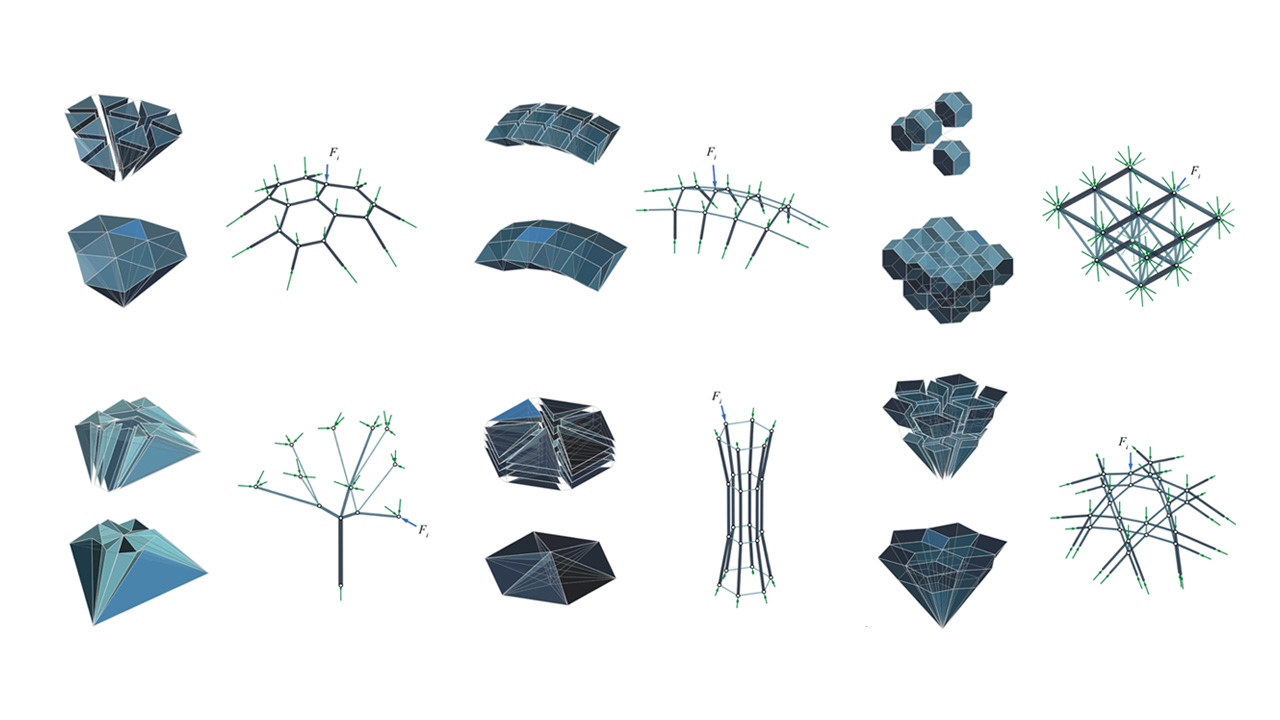

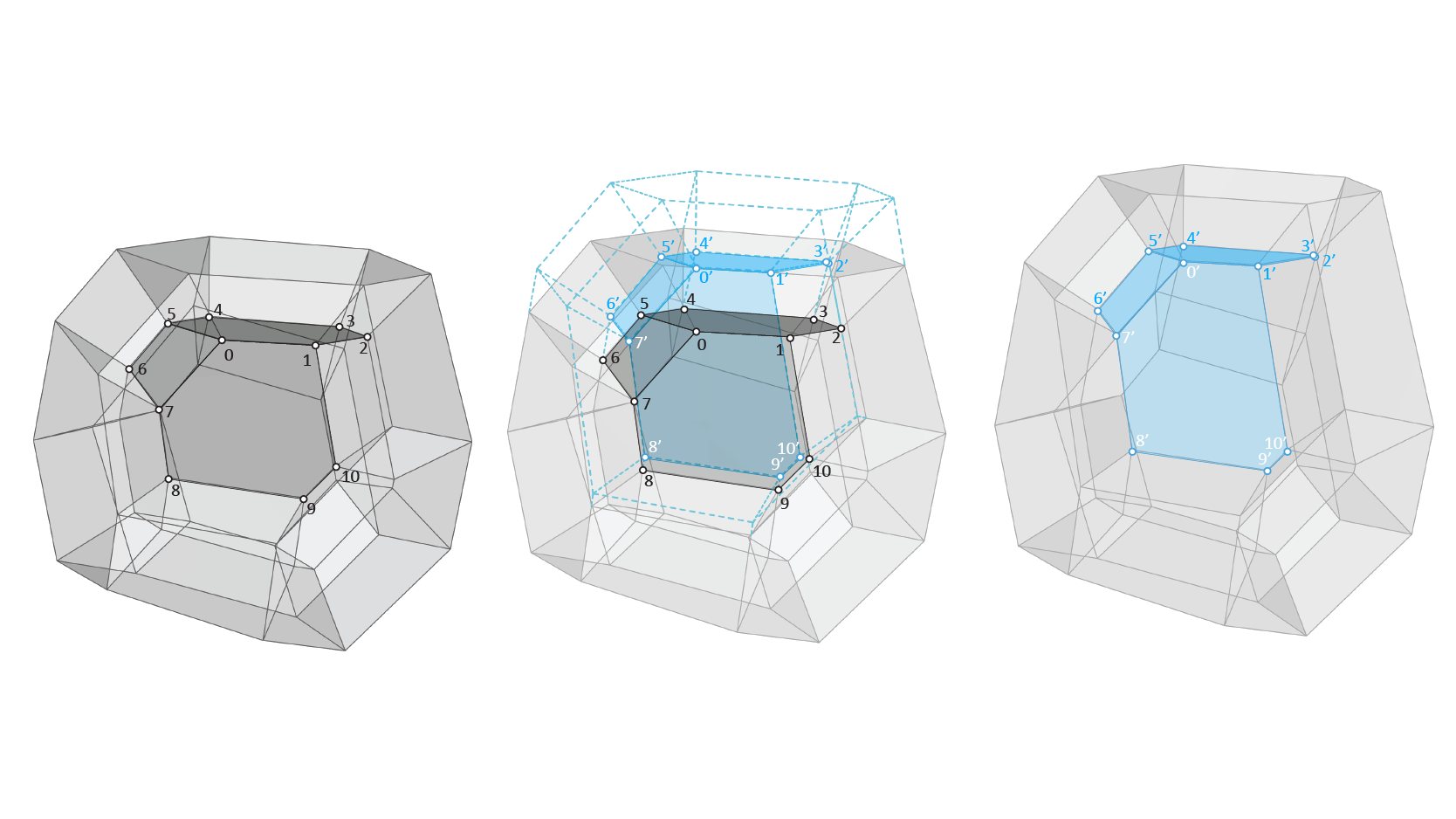

Algebraic 3D graphic statics: Reciprocal constructions

 Márton Hablicsk, Masoud Akbarzadeh, Yi Guo

Abstract

The recently developed 3D graphic statics (3DGS) lacks a rigorous mathematical definition relating the geometrical and topological properties of the reciprocal polyhedral diagrams as well as a precise method for the geometric construction of these diagrams. This paper provides a fundamental algebraic formulation for 3DGS by developing equilibrium equations around the edges of the primal diagram and satisfying the equations by the closeness of the polygons constructed by the edges of the corresponding faces in the dual/reciprocal diagram. The research provides multiple numerical methods for solving the equilibrium equations and explains the advantage of using each technique. The approach of this paper can be used for compression-and-tension combined form-finding and analysis as it allows constructing both the form and force diagram based on the interpretation of the input diagram. Besides, the paper expands on the geometric/static degrees of (in)determinacies of the diagrams using the algebraic formulation and shows how these properties can be used for the constrained manipulation of the polyhedrons in an interactive environment without breaking the reciprocity between the two.

BibTex
M. Hablicsek, M. Akbarzadeh, Y. Guo. Algebraic 3D graphic statics: Reciprocal constructions. Computer-Aided Design, 2018.
[BibTeX] [Download PDF]
@article{hablicsek2018algebraic,
  title={Algebraic 3D graphic statics: Reciprocal constructions},
  author={Hablicsek, M. and Akbarzadeh, M. and Guo, Y.},
  journal={Computer-Aided Design},
  year={2018}
}

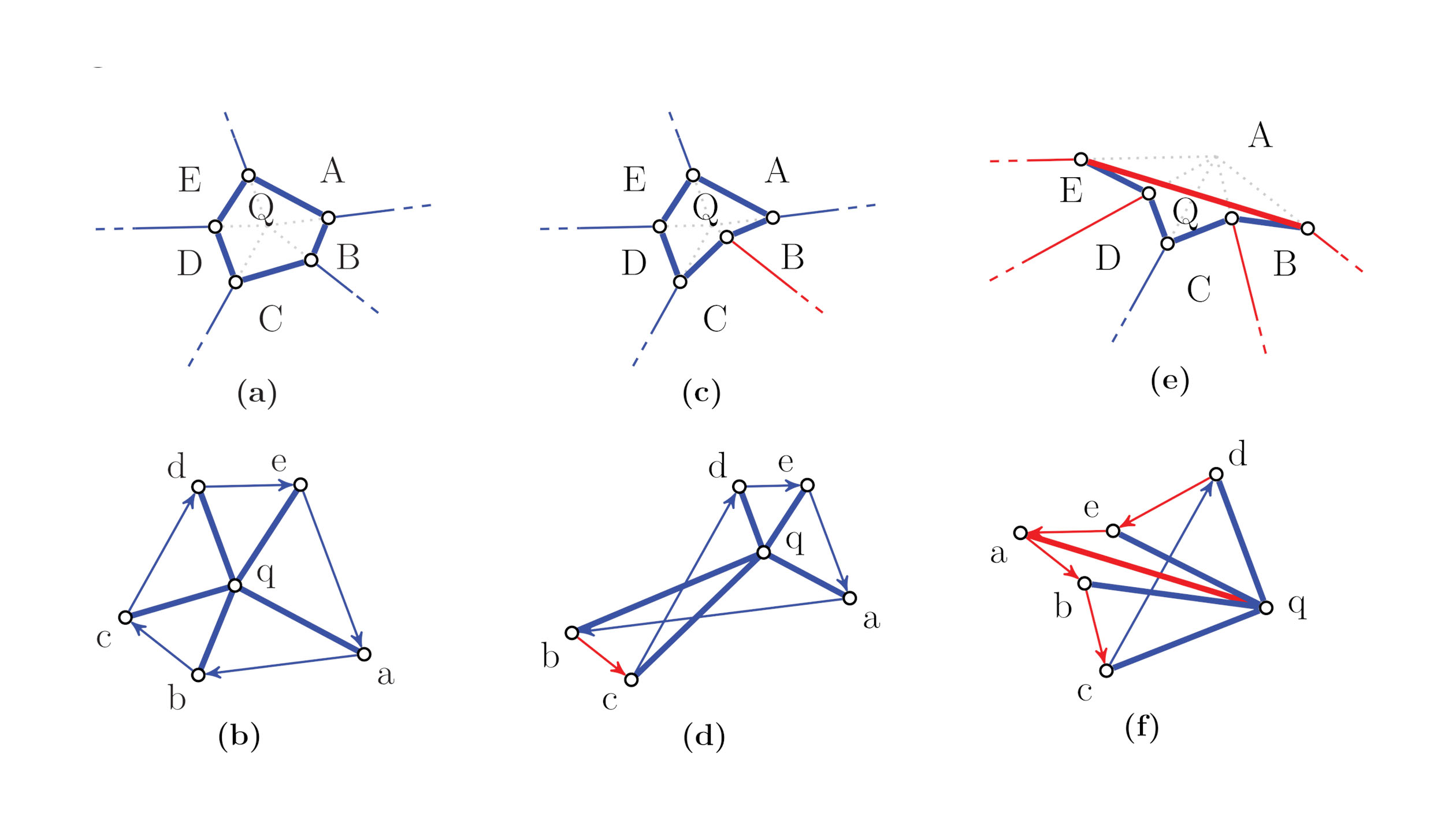

Developing Algebraic Constraints for Reciprocal Polyhedral Diagrams of 3D Graphic Statics

Masoud Akbarzadeh, Márton Hablicsk, Yi Guo

Abstract

3D graphic statics using reciprocal polyhedral diagrams (3DGS) is one of the recent developments in the field of geometry-based structural form finding and is a powerful method in generating spatial structural forms and their force diagram in three dimensions. However, constructing reciprocal polyhedral diagrams in 3D is quite challenging and the research lacks a rigorous mathematical definition formulating the geometrical and reciprocal relationship between the form and force diagrams in 3DGS.  Having been used for the past 150 years, 2D graphic statics has recently been formulated algebraically that allows better topological understanding the relationship between the form and the force diagrams in 2D. Such algebraic formulation is crucial in developing interactive tools enabling designers and practitioner to exploit the potentials of working with the form and force diagrams by computationally drawing the reciprocal diagrams for each design iteration which was otherwise quite tedious and cumbersome. This paper provides initial formulation of the reciprocal relationships between polyhedral form and the force diagrams in 3DGS and lays a foundation for further research in algebraic implementation of 3DGS.
